Respiratory Machine
Patient Respiratory Ventilator Machine for Ambulance
Model Number:NT-900B-1Place of Origin:Jiangsu, China
Instrument classification:Class III
Quick Details
Model Number:NT-900B-1
Place of Origin:Jiangsu, China
Instrument classification:Class III
Product name:Ventilator machine
IMV Frequency:1~20 bpm
Lung compliance:≤30 mL / kPa
Oxygen Concentration:21%~100%
PEEP:0 ~ 1.0 kPa
Max .Safe Pressure:≤6.0 kPa
Tidal Volum:20~2000ml
I/E Ratio:4:1 ~ 1:4
Respiration Frequency:1~99 bpm
Ptr:-1.0kPa~1.0kPa
Type:Breathing Apparatus
Supply Ability
Supply Ability:30000 Set/Sets per Month

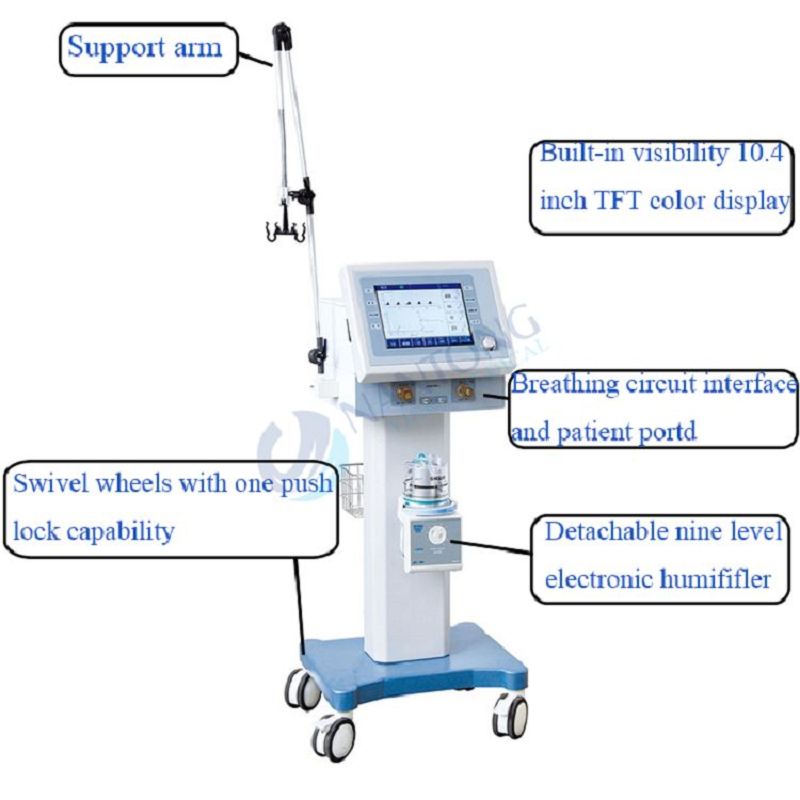

Main features
1.Microprocessor controlled, Pneumatically driven electronically controlled
2.10.4” TFT display screen for ventilation parameters
3.Humidifier with temperature adjustment
4.With medical air compressor, built-in backup battery up to at least 4 hours
5.Applied for Adult and Pediatric
Index:

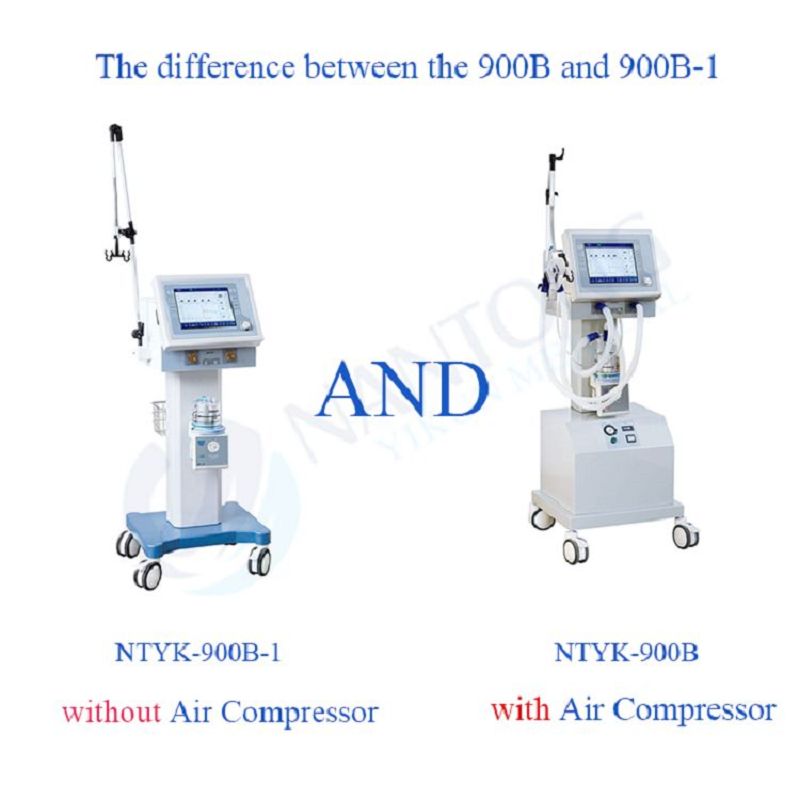

Model | NTYK-900B | NTYK-900B-1 |
Air Compressor | with Air Compressor | without Air Compressor |

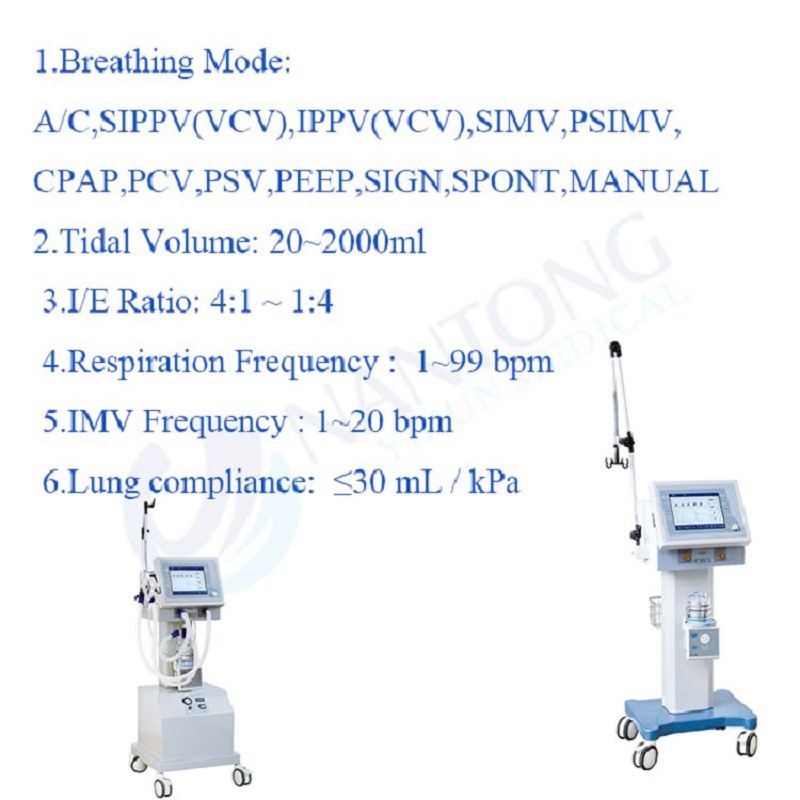

Breathing Mode: | A/C,SIPPV(VCV),IPPV(VCV),SIMV,PSIMV,CPAP,PCV,PSV | |
Tidal Volume: | 20~2000ml | |
I/E Ratio: | 4:1 ~ 1:4 | |
Respiration Frequency : | 1~99 bpm | |
IMV Frequency : | 1~20 bpm | |
Lung compliance: | ≤30 mL / kPa | |
Oxygen Concentration: | 21%~100% | |
Maximum Minute ventilation: | ≥18L / min | |
Pressure Limited: | 1.0kPa~ 6.0kPa | |
PEEP: | 0 ~ 1.0 kPa | |
Ptr: | -1.0kPa~1.0kPa | |
Max .Safe Pressure: | ≤6.0 kPa | |
Trigger Method: | Pressure Trigger,Volume Trigger | |
Control Method: | Pressure Control,Volume Control | |
