Product
Respiratory Machine

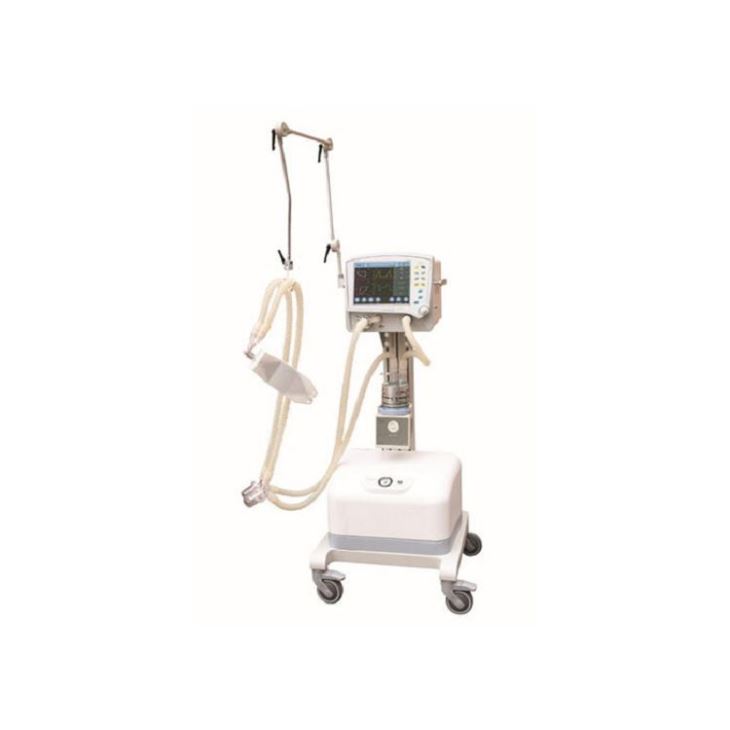

New Coronavirus Treatment Medical Ventilator Machine
Tidal volume : 20 ~ 2500mlVentilation mode : VCV, VCV +Sigh, PCV, PRVC, SIMV+VCV,
SIMV+PCV, SIMV+PRVC ,SPONT(CPAP/PSV),

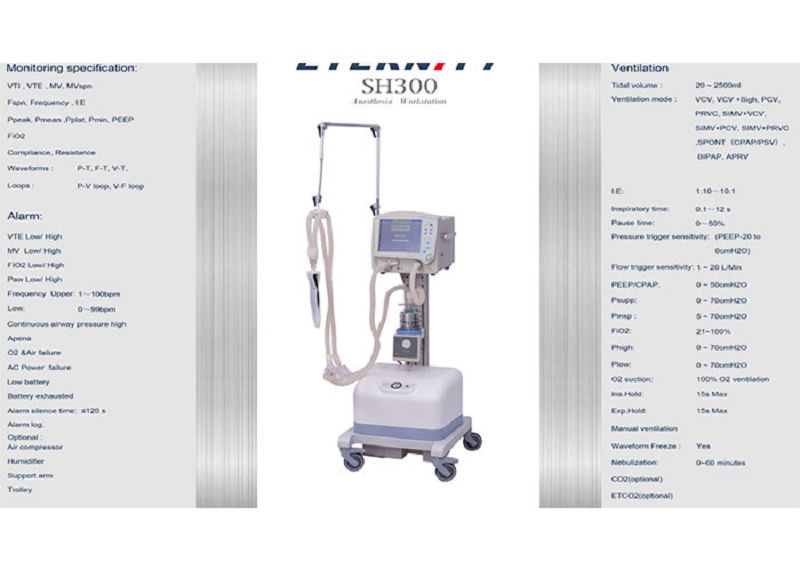

Model Number: | SH300 |
Certification: | CE FDA |
Place of Origin: | Zhengzhou |
Minimum Order Quantity: | 1 |
Price: | 20000-30000USD |
Payment Terms: | L/C, T/T, Western Union, MoneyGram |
Supply Ability: | 30000 unit per month |
Delivery Time: | 3-5 days |
Material: | PCV, Steel, Chip |
Application: | Respiratory Support Assisted |
Key word: | Coronavirus Treatment Programs |
Weight: | 43kg |
Use: | Medical Ventilator |
Shipping: | DHL TNT FeDex UPS By plane |
Ventilation specification:
Display | 10.4” TFT touch screen |
Type | pneumatically driven electronic control |
Gas supply | medical o2 , medical air |
ower supply | AC 110-240V , 50-60 Hz |
Battery | Lithium Battery |
Weight | 16KG |
Dimension | (H)400 X (W)303 X (D)250mm |
Tidal volume : 20 ~ 2500ml
Ventilation mode : VCV, VCV +Sigh, PCV, PRVC, SIMV+VCV,
SIMV+PCV, SIMV+PRVC ,SPONT(CPAP/PSV),
BIPAP, APRV
Freq:4-100
Inspiratory time: 0.1～12 s
Pause time: 0～50%
Pressure trigger sensitivity: (PEEP-20 to 0cmH2O)
PEEP/CPAP: 0 ~ 50cmH2O
Psupp: 0 ~ 70cmH2O
Pinsp :5 ~ 70cmH2O
FiO2:21~100%
Phigh:5 ~ 70cmH2O
Plow: 0 ~ 50cmH2O
O2 suction: 100% O2 ventilation for 2mins
Ins.Hold: 15s Max
Exp.Hold: 15s Max
Manual ventilation
Waveform Freeze : Yes
Nebulization: 0~60 minutes adjustable.
CO2(optional)
ETCO2(optional)
Monitoring specification:
VTI , VTE , MV, MVspn
Fspn, Frequency , I:E
Ppeak, Pmean ,Pplat, Pmin, PEEP
FiO2
Compliance, Resistance
Waveforms : P-T, F-T, V-T,
Loops : P-V loop, V-F loop
