Product
Respiratory Machine

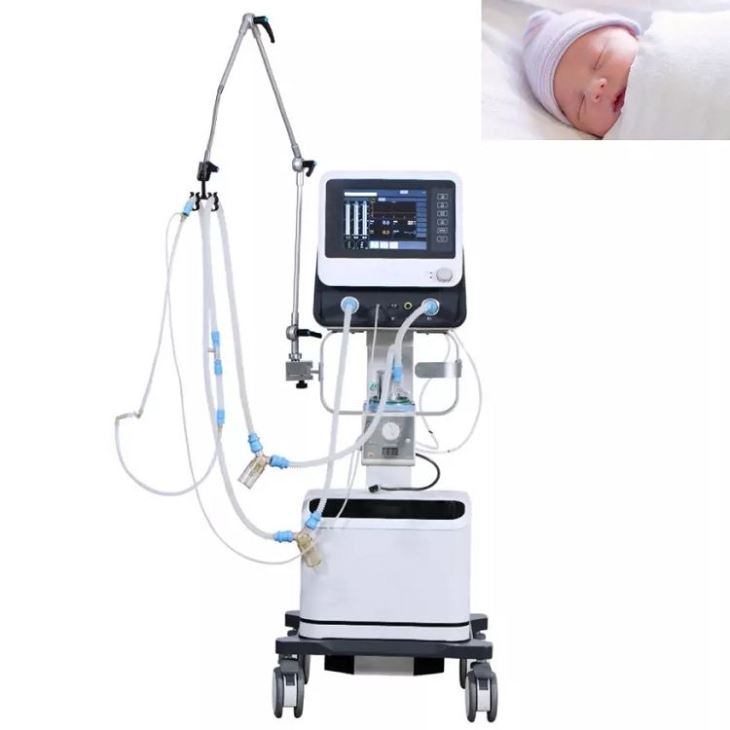

Continuous Positive Airway Pressure Device Infant Cpap Machine
10.4" TFT Touch LCD screen displays the Ventilation parameters, Alarming information and Waveform.Integration breathing circuit design, ensure easy operating and keep tidy.Quick Details
Type:Breathing Apparatus
Brand Name:Darppon
Model Number:DP-200A Plus
Place of Origin:Hubei, China
Instrument classification:Class II
Product name:CPAP for new born baby
Certificate:CE ISO
Application:NICU
Warranty:1 Year
Material:ABS
Packing:Wooden Case
Voltage:AC90~240V 50-60Hz
Display:10.4" TFT Touch LCD screen
Modes:CPAP NIPPV HFNC MANUAL BIPAP
Continuous output flow:≥25L/min
Supply Ability
Supply Ability:1000 Piece/Pieces per Month Hot selling continuous positive airway pressure device infant cp
Trust Points:
Simplicity: easy to use, easy to move with 4 wheels.
Choice: adapt the equipment to your patients and procedures freely.
Designed and manufactured by Superstar Medical with over 23 years experience in this area.
Flexible configurations to suit your needs.
International standard and advanced technology suitable for all baby patient around the world.
Compact interface and big screen give you better operating experience.
Over 2,000 units installed in the world.
Features:
10.4" TFT Touch LCD screen displays the Ventilation parameters, Alarming information and Waveform.
Integration breathing circuit design, ensure easy operating and keep tidy.
Multiple parameters monitoring interface, make every parameter clear, let users know the patient conditions in all aspects;
High precisionO2 concentration detection function included.
Built-in air and oxygen blender, ensure stable oxygen concentration.
Stable and low noise air compressor create quiet work environment for doctors, can be used for 2-3 CPAP Systems together.
Safety:
Three level alarming system, visual and sound alarm information.
With lots of alarming, reminding and protection functions.
Advanced power management control technology.
With built-in backup power source, when outside power source goes off, back-up power source starts to work.
Specifications
| Modes | CPAP NIPPV HFNC MANUAL BIPAP |
Ventilator parameter ranges | |
Oxygen concentration | Adjusting range:21%-100% |
CPAP | Adjusting range:0cmH2O-15cmH2O |
Continuous flow | Adjusting range:2L/min-20L/min |
Pressure monitoring | 0cmH2O-60cmH2O |
Inhalation pressure | 3cmH2O-15cmH2O |
Exhalation pressure | 1cmH2O-13cmH2O |
Breath Frequency | Adjusting range: 1bpm-100bpm |
Inhalation time | Adjusting range: 0.1s-15s |
Air compressor | |
Continuous output flow | ≥25L/min |
Peak output flow | ≥120L/min |
Graphical display | P-T(pressure – time) |
Size | Wooden case packing size:L 670*W 700*H 1410mm |
Alarm and protection | |
High oxygen concentration alarm | 19%-100% |
Low oxygen concentration alarm | 15%-99% |
Air and oxygen blender alarm | 1.5kPa-6kPa |
Compression pump alarm | When any gas source lack |
