Product
Respiratory Machine

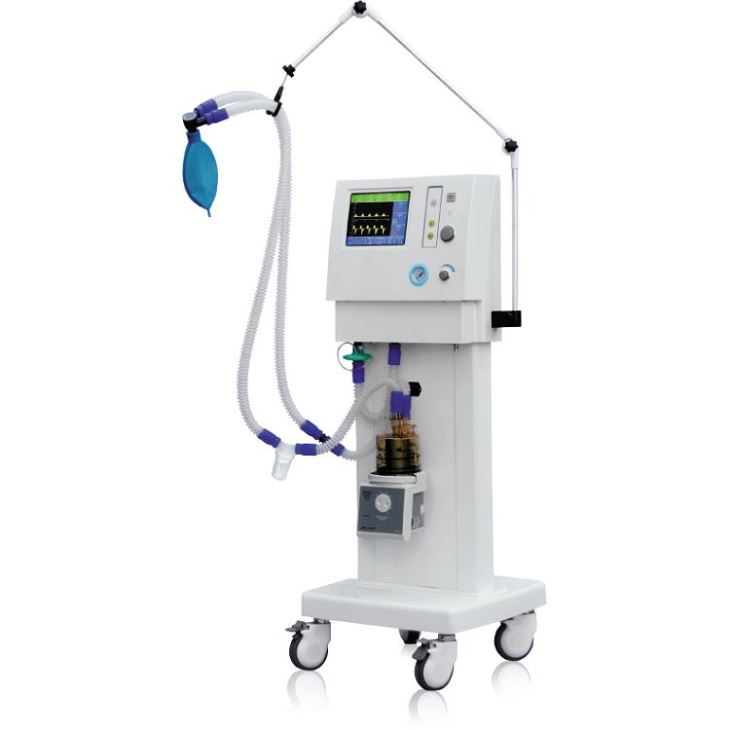

Multiple Working Modes Medical Respiratory Ventilator Machine
RC-2000B2 is a multi-functional Ventilator, it is applicable for children and adults in sickroom, ICU or of emergency.Quick Details
Type:Anesthesia Equipments & Accessories, Respiratory Equipments Accessories
Brand Name:Ro-Chain
Model Number:RC-V2000B2
Place of Origin:Jiangsu, China
Instrument classification:Class III
Warranty:2 years, 5 years after shipment
After-sale Service:Online Technical Support
Product Name:hospital clinic respiratory ventilator machine
Product Model:RC-V2000B2
Display mode:High-definition 8.4" TFT color LCD screen display
Ventilation mode:IPPV, SIPPV, SIMV, PEEP, MANUAL, SIGH
Tidal volume:50~1500 ml
Rate:2~99 bpm
SIMV rate:2~20 bpm
Inspiratory trigger pressure:-1.0~2.0kPa
RC-2000B2 is a multi-functional Ventilator, it is applicable for children and adults in sickroom, ICU or of emergency.
Product Specification :
1.Display mode: High-definition 8.4” TFT color LCD screen display
2.Ventilation mode: IPPV, SIPPV, SIMV, PEEP, MANUAL, SIGH
3.Ventilation parameters:
Tidal volume 50~1500 ml
VENTILATOR | ||||
Model | RC-V2000B | RC-2000B1 | RC-V2000B2 | RC-V2000B3 |
Portable Ventilator | Vertical Ventilator | ICU Ventilator | ICU Ventilator | |
Display mode | 5.7” | 5.7” | 10.4” | 10.4” |
Mode | IPPV, SIPPV, SIMV, MANUAL | VCV,PCV,SIMV,PSV,PSV+SIMV,CPAP | ||
Function | PEEP,SIGH, IRV | PEEP,SIGH, IRV, IP,Standby | ||
Tidal volume | 50~1500ml | 50~1500ml | 20~1800 ml | 20~1800 ml |
Rate | 2~99bpm | 2~99bpm | 2~120bpm | 2~120bpm |
SIMV rate | 2~20bpm | 2~20bpm | 2~120bpm | 2~120bpm |
I:E | 2:1~1:8 | 2:1~1:8 | 4:1~1:8 | 4:1~1:8 |
Inspiratory trigger pressure | -1.0~2.0 kPa | -1.0~2.0 kPa | -1.0~1.0 kPa | -1.0~1.0 kPa |
PEEP | 0~2.0 kPa | 0~2.0 kPa | 0~25 cmH2O | 0~25 cmH2O |
Pressure range | 1.0~6.0 kPa | 1.0~6.0 kPa | 3~50 cmH2O | 3~50 cmH2O |
Pressure limitation | / | / | 5~60 cmH2O | 5~60 cmH2O |
Pressure slope | / | / | 1~10 gear | 1~10 gear |
Flow rate setting | / | / | 1~10 gear | 1~10 gear |
Time control | / | / | 1~10s | 1~10s |
SIGH | 1.5 times the inspiratory time | 1.5 times the inspiratory time (60-120 adjustable) | ||
Inspiratory platform | / | / | 0~50% | 0~50% |
Oxygen concentration | / | / | 45%~100% | 21%~100% |
Parameters for ventilation monitoring | tidal volume, minute ventilation volume, IPPV rate, SIMV rate, total respiratory rate, I/E, peak pressure of airway, pressure - time waveform, flow rate - time waveform, PEEP, inspiratory trigger pressure | Expired tidal volume, Inhale tidal volume, minute ventilation volume, IPPV rate, SIMV rate, total respiratory rate, autonomous inspiratory rate, I/E, peak pressure of airway, average pressure, PEEP, inspiratory trigger pressure, Inspiratory platform, oxygen concentration, battery capacity, pressure - time waveform, flow rate - time waveform, flow-volume loop, pressure-volume loop | ||
Power | 220V±10%, 50Hz±1Hz. UPS, Storage battery | |||
Mechanical Arms | / | / | YES | YES |
Compressor | / | / | / | YES |
Rate 2~99 bpm
SIMV rate 2~20 bpm
I:E 2:1~1:8
Inspiratory trigger pressure -1.0~2.0kPa
PEEP 0~2.0 kPa
Pressure range 1.0~6.0 kPa
SIGH 1.5 times the inspiratory time
Inspiratory platform 0~50%
4.Parameters for ventilation monitoring: tidal volume, ventilation volume, IPPV rate, SIMV rate, total respiratory rate, I/E, peak pressure of airway, average pressure, pressure - time waveform, flow rate - time waveform, PEEP, inspiratory trigger pressure, Inspiratory platform
5,Monitoring of oxygen concentration: 21%~100%
6.Security Alarm System
1) Oxygen Concentration alarm: upper limit setting range 50%~100%, low limit setting range 15%~50%
2) Airway pressure alarm: upper limit setting range 1.0~6.0 kPa, low limit setting range 0.4~2.0 kPa
3) Per-minute ventilation volume alarm: upper limit setting range 3.0~30L/min, low limit setting range 1.0~10L/min
4) Sustained high-pressure alarm: it will give alarm when stress have consistently been higher than 2.5 kPa
5) Suffocation alarm: it will give sound and light alarm if there is no tidal volume input for 15 seconds power alarm
7. Power:AC 220V±10% 50Hz±1Hz UPS, Storage battery
