Product
Respiratory Machine
Infant Continuous Positive Airway Pressure
Bubble CPAP is a sort of special medical equipment for supporting of babies' breath which devised and manufactured based on the wide application of closed continuous NCPAP in department of pediatrics.Quick Details
Brand Name:Darppon
Model Number:DP-CG02
Place of Origin:Hubei, China
Instrument classification:Class II
Certificate:ISO13485
FIO2:21%-100%
Flow:0-18LPM
CPAP:3~10cmH2O
Noise:≤50dB(A)
Gas source:Air/Oxygen 0.3Mpa~0.4Mpa
Power source:AC.220V/110V,50Hz~60Hz
Alarm:Gas supply pressure difference>0.1MPa
Air compressor:PN-4000 (Optional)
Pressure Safety valve:3-10cmH2O(Optional)
Type:Infant Care Equipments
Supply Ability
Supply Ability:1000 Unit/Units per Month
Description

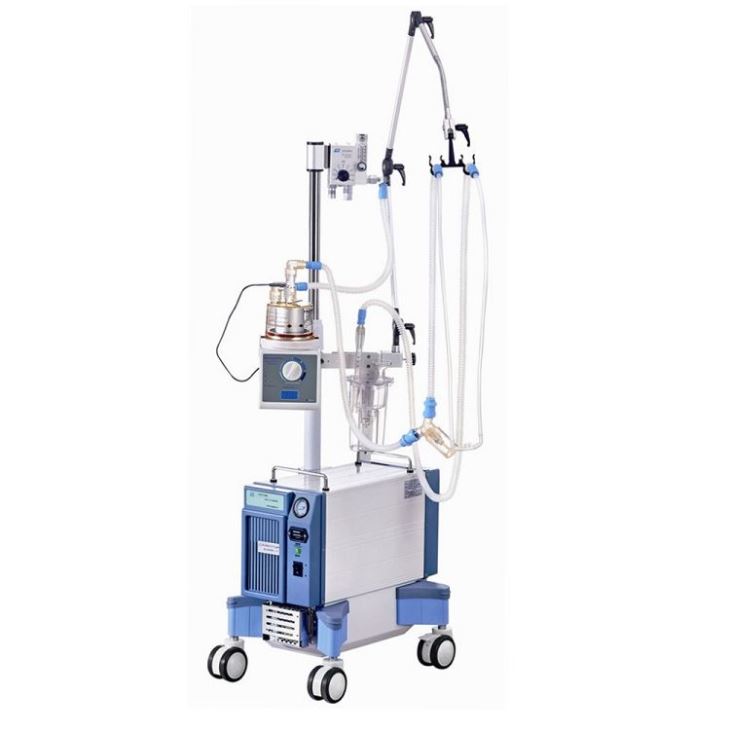

Bubble CPAP Infant Continuous Positive Airway Pressure
Bubble CPAP is a sort of special medical equipment for supporting of babies' breath which devised and manufactured based on the wide application of closed continuous NCPAP in department of pediatrics. It uses on the course of ventilation treatment of Nasal-CPAP for premature, neonate, infant to children below 14 year old. The mode of CPAP can reduce babies' WOB effectively, while keeping the autonomous respiration well.
Functions:
Supply a safe and controllable FIO2;
Keep the FRC effectively;
Reduce infant's WOB;
Reduce the need of invasive mechanical ventilation;
Supply better warm and humid gas;
Reduce the occurrence rate of the CLD;
Improve the physical sighs, such as height, weight.
Specification
Model | DP-CG02 |
FiO2 | 21%~100%(±3%) |
CPAP | 3~10cmH2O |
Flow | 0~18LPM |
Noise | ≤50dB(A) |
Power source | AC.220V/110V,50Hz~60Hz |
Gas source | Air/Oxygen: 0.3Mpa~0.4Mpa |
Alarm | Gas supply pressure difference>0.1MPa |
Pressure Safety valve | 20cmH2O & 5-20cmH2O(optional) |
Humidifier | Standard: DP-2000F |
Optional: DP-2000FB;DP-2000FC850 | |
Air compressor | PN-4000 (Optional) |
CPAP generator | Yes |
Trolley | Yes |
Oxygen analyzer | Optional |
