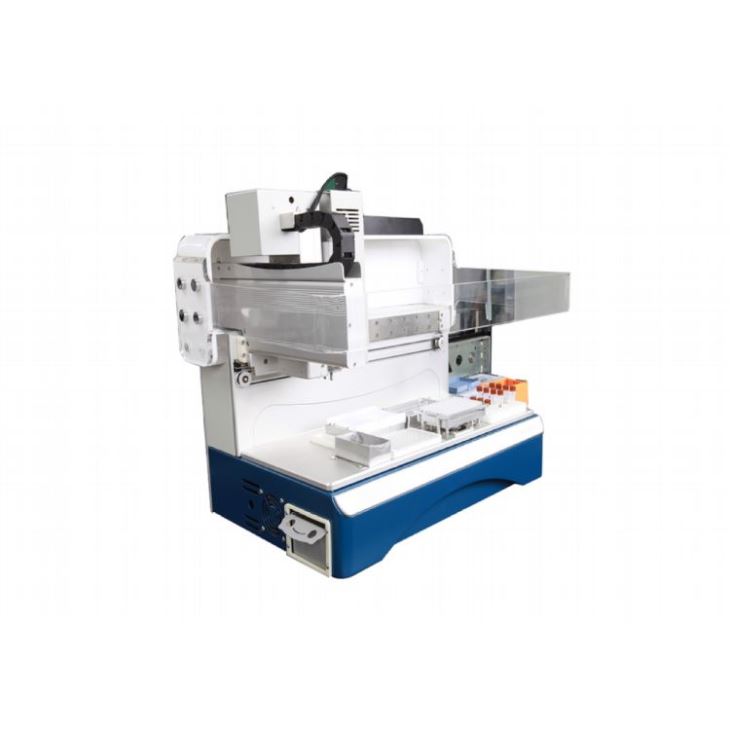

Fully Automated Nucleic Acid Extraction System

FAST DP01 is a fully automatic, high-throughput nucleic acid sample pre-processing and extraction system.

FAST DP01 is a fully automatic, high-throughput nucleic acid sample pre-processing and extraction system. It uses efficient micro-fluid distribution technology, combined with the industry-leading biological one-step lysis method for multiple nucleic acid quantitative detection kits, making PCR detection unnecessary. Boiling, centrifuging, and manual separation and transfer, the tedious and complicated tasks in the past, have become simple and easy.

Features

1.Simplification

Compared with the previous methods of PCR nucleic acid extraction, the complicated and complicated operations such as boiling, high-speed centrifugation, and manual separation and transfer are unnecessary, and the work becomes simple and easy.

Faster.

2. The extraction speed is fast. After the extraction is completed, it can be directly amplified on the machine to achieve fast detection and output results.

3. Automation

The technically controlled extraction operation has better accuracy and reproducibility than the previous manual, which standardizes the pre-PCR process.

4.Systematic

Automated extraction combined with industry-leading One-Step Nucleic Acid Amplification Kit and traceable calibrators constitute a PCR detection system to meet the higher needs of user quality construction and development.

5.Decontamination

Automated full-process antifouling system (such as one person, one tube, non-contact sample addition and mixing technology, and liquid-gas isolation technology for PCR reaction tubes), coupled with the simplification of the extraction process, has greatly removed many of the past PCR detection Pollution links, the results are more reliable.

6. Popularization

The automated extraction makes the original high-precision PCR gene amplification technology greatly reduce the technical threshold and facilitates the application of more medical institutions.

Technical Parameters

Panel preparation: oscillator + 5 customizable standard positions

Pipetting range: 1μl — 250μl (0.1μl step)

Pipette tips: standard 50μl (optional 20μl, 200μl tips)

Pipette module: 4-channel ceramic pipette, accurate movement positioning to 0.5 mm

Software: Friendly Chinese software, graphical operation interface, intuitive and simple

Computer system: Windows XP system or windows 7 system

Instrument size: W45 × L57 × H 54 cm

Power: 220V / 50Hz

Weight: 31kg

List of one-step detection items

1. Hepatitis B virus (HBV) nucleic acid quantitative assay kit
